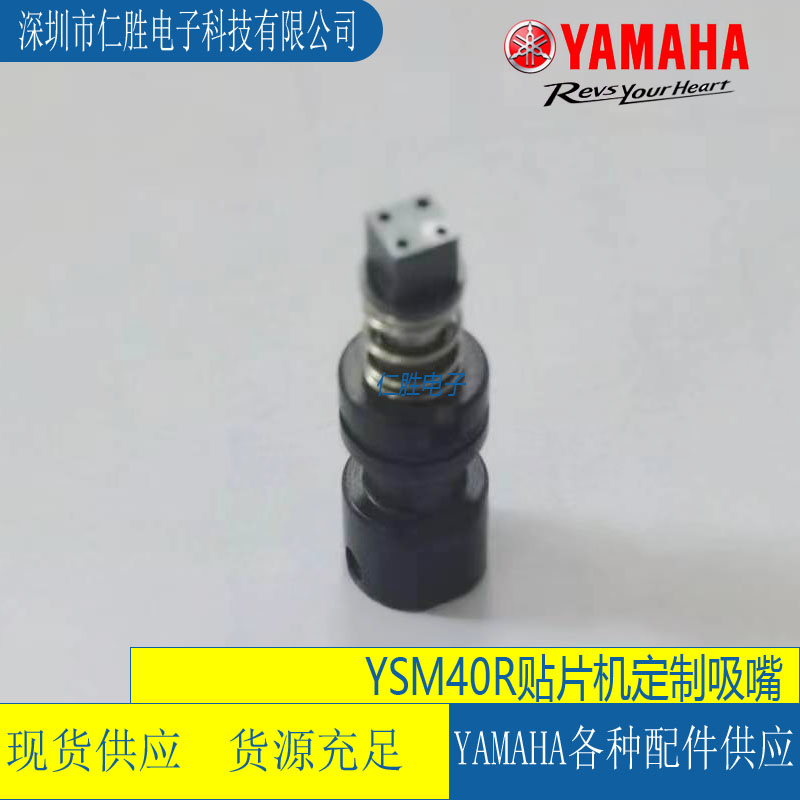

YAMAHA YSM40R定制吸嘴NOZZLE ，雅馬哈各種吸嘴洗澡手。
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M7710-A0 NOZZLE,501A ASSY. 1 (MU)
2 KLF-M7711-00 BODY,NOZZLE 501 1
3 KLF-M7713-00 SPRING,NOZZLE 6
4 KLF-M7720-A1 NOZZLE,502A ASSY. 1 (MU)
5 KLF-M7721-00 BODY,NOZZLE 502 1
6 KLF-M87A0-A0 NOZZLE,510A ASSY. 1 (MU)
7 KLF-M87A1-00 BODY,NOZZLE 510 1
8 KLF-M8710-A1 NOZZLE,511A ASSY. 1 (MU)
9 KLF-M8711-00 BODY,NOZZLE 511 1
10 KLF-M8720-A1 NOZZLE,512A ASSY. 1 (MU)
11 KLF-M8721-00 BODY,NOZZLE 512 1
12 KLF-M8730-A2 NOZZLE,513A ASSY. 1 (MU)
13 KLF-M8731-01 BODY,NOZZLE 513 1
14 KLF-M8740-A0 NOZZLE,503A/514A AS. 1 (MU)
15 KHY-M7741-00 BODY,NOZZLE 303/314 1
16 KHN-M7713-00 SPRING 2
17 KHN-M7714-00 PIN 2
18 KHN-M7715-00 CLIP 2
19 KLF-M8750-A0 NOZZLE,504A/515A AS. 1 (MU)
20 KGS-M7742-00 LABEL,NOZZLE 2
21 90990-17J013 O-RING 1
22 KLF-M8770-A0 NOZZLE,506A/517A AS. 1 (MU)
23 KHY-M7771-00 BODY,NOZZLE 306/317 1
24 KLF-M8780-A0 NOZZLE,507A/518A AS. 1 (MU)
25 90990-17J014 O-RING 1
26 KHY-M7711-04 NZL.311/7203 1
27 KHN-M7713-10 SPRING 1
28 KMB-M7716-00 O-RING 1
29 90990-19J019 NEEDLE PIN 1
30 KMB-M7730-A0 NOZZLE 7203A ASSY. 1 (RS)
31 KMB-M7740-A0 NOZZLE 7204A ASSY. 1 (RS)
32 KHY-M7721-03 NZL.312/7204 1
33 KMB-M7750-A0 NOZZLE 7205A ASSY. 1 (RS)
34 KHN-M7721-05 NZL.302/7205 1
35 KMB-M7760-A0 NOZZLE 7206A ASSY. 1 (RS)
36 KHY-M7731-03 NZL.313/7206 1
37 KMB-M7780-A0 NOZZLE 7208A ASSY. 1 (RS)
38 KHY-M7741-00 BODY,NOZZLE 303/314 1
|
