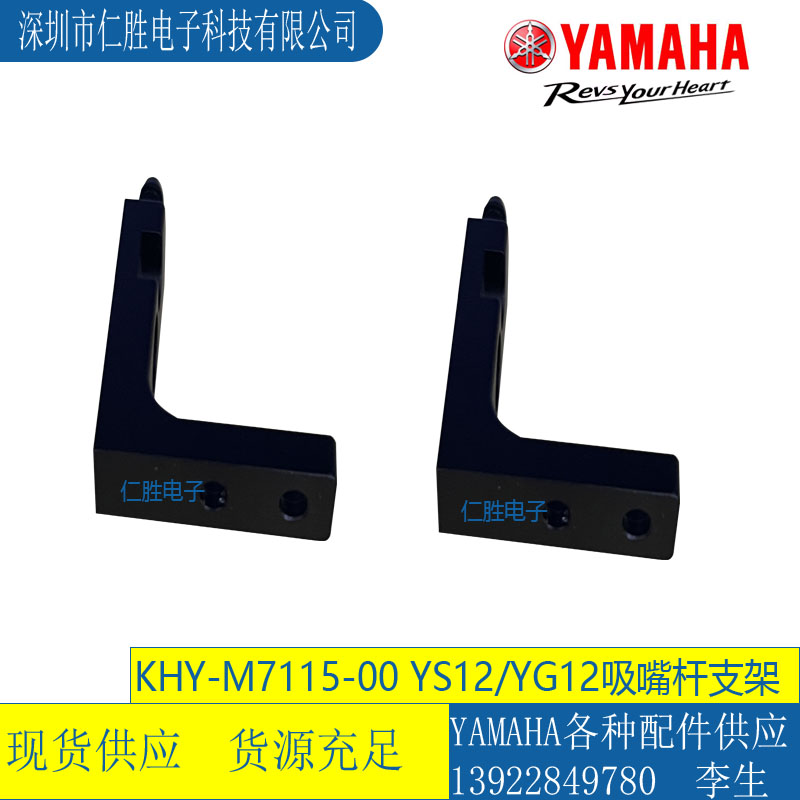

KHY-M7115-00 雅馬哈貼片機(jī)YS12吸嘴桿L型支架 BRACKETJOINT

Part No. Part Name Q'ty
1 KHY-M7106-A0 HEAD SHAFT I ASSY
2 KHY-M7106-00 BALL SPLINE I 5
3 KHY-M7107-A0 HEAD SHAFT 2 ASSY 5
3-1 KHY-M7106-B0 HEAD SHAFT IBASSY 5
4 KHY-M7107-00 BALLSPLINE 2 5
4-1 KHY-M7106-00 BALL SPLINEI 5
5 KHY-M7105-00 HOLDER.NOZZLE 10
6 KHY-M7108-00 COLLAR.BRG. 10
7 KHY-M7111-00 HOLDERBEARING 10
8 KHY-M7112-00 PLATE 1,BRG 10
9 KHY-M7115-00 BRACKETJOINT 10
9-1 KHY-M7115-01 BRACKETJOINT 10
10 KHY-M7116-00 SPRING.RETURN 10
11 KHY-M711A-00 PIN,POST 10
11-1 Delete
12 KHY-M7121-00 PULLEYSHAFT 10
13 KHY-M7122-00 NUT.SHAFT 10
14 KHY-M7123-00 COLLAR.SHAFT 10
15 KG7-M7137-A0 LEAFSPRING 20
16 90990-02J005 SET SCREW M3X2 20
17 90990-08J016 SCREW.PAN HEAD 40
18 90990-15J003 NUT.HEXAGON 10
19 90990-171053 O-RING 20
20 90990-22J009 PackInG 10
21 90933-02J104 BEARING 10
22 STSH4-M5M JOINT 10
23 SPF-M3 PLUG 10
24 91312-03006 BOLT HEX.SOCKETHEAD 20 M3X6
25 91312-03030 BOLT HEX.SOCKETHEAD 20 M3X30
26 KHY-M712S-A0 SHAFTISPARE 1 SPARE
27 KHY-M711S-A0 SHAFTI,SPARE 1 SParE
|
